Ampli1 Library Preparation

Ampli1 Library Preparation

Library preparation kits tailored to your single cell needs

Ampli1™ LowPass Kit and Ampli1™ OncoSeek Panel enable the preparation of next-generation sequencing (NGS) libraries starting from the Ampli1 WGA product to detect genome-wide Copy Number Aberrations and hotspot mutations in the same single cell.

This workflow takes advantage of the genome-wide coverage and unbiased representation of alleles at genomic loci of Ampli1™ WGA kit.

PRODUCT LITERATURE DOWNLOAD

Download brochure


Learn more about Circulating Tumor Cell Single Cell Analysis

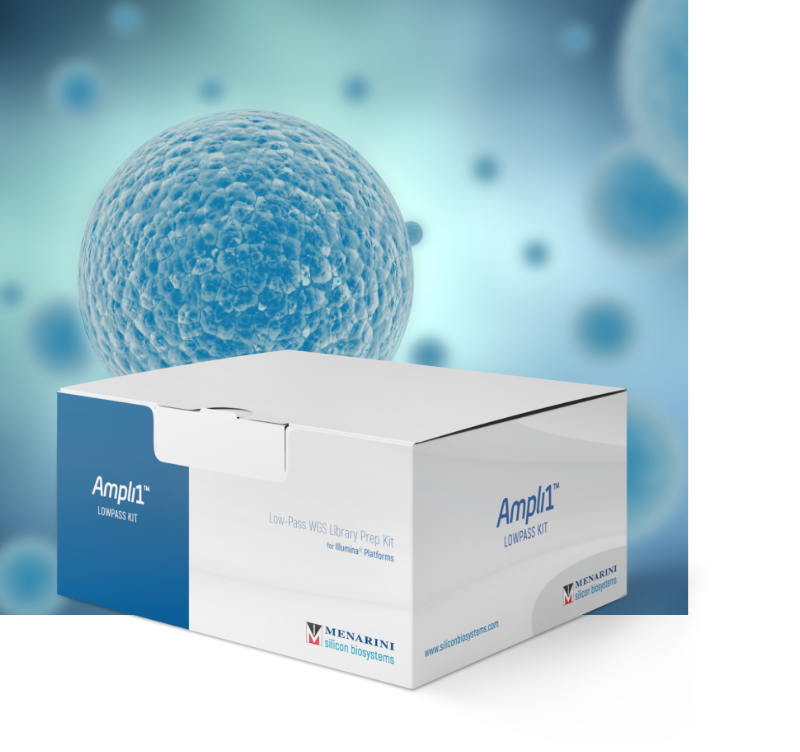

Ampli1 LowPass Kit

Ampli1 LowPass Kit generates multiplexed, sequencing-ready libraries in a streamlined single-day protocol, for detection of chromosomal aneuploidies and copy number aberrations (CNAs) by low-pass whole genome sequencing.

The Ampli1 LowPass Kit works exclusively with Ampli1 WGA product.

Ampli1 LowPass Kit is compatible with Ion Torrent systems (Ion PGM™ and Ion S5™) and with all main Illumina Sequencers ( MiSeq,  NovaSeqTM, NextSeq 500/550, NextSeq 1000/2000).

Product is for research use only (RUO) – not for use in diagnostic procedures.

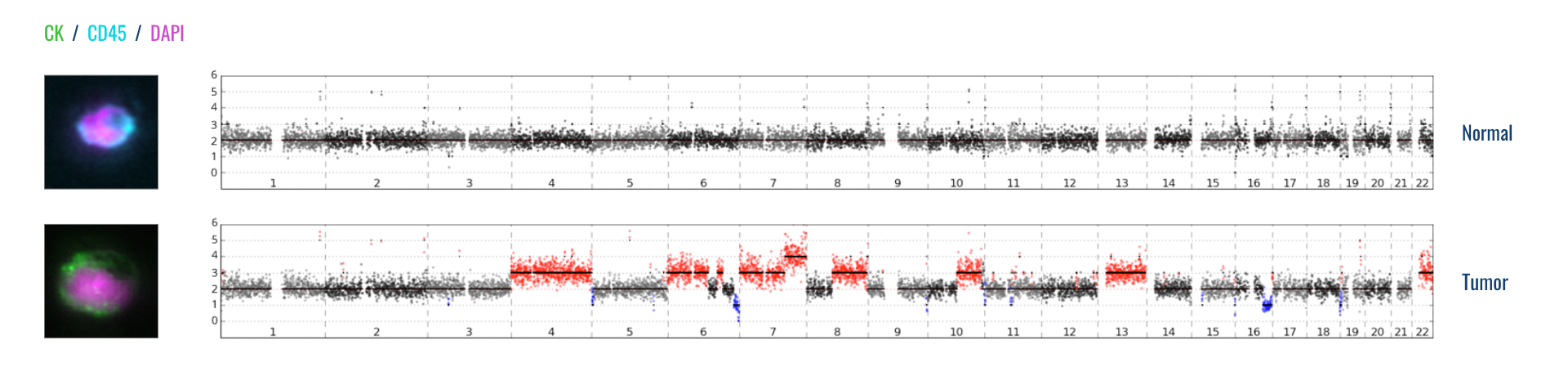

Specific and quantitative detection of copy number aberrations (CNAs) in single CTC

Low-pass Whole Genome Profile (chr 1-22) of single CTC (lower panel) and WBC (upper panel) obtained with Ampli1 WGA kit and Ampli1 LowPass kit. Each cell was isolated with DEPArray™ Technology from a patient with Lung Adenocarcinoma. Ploidy values are indicated in the y-axis. CNAs in the CTC are indicated in red and blue.

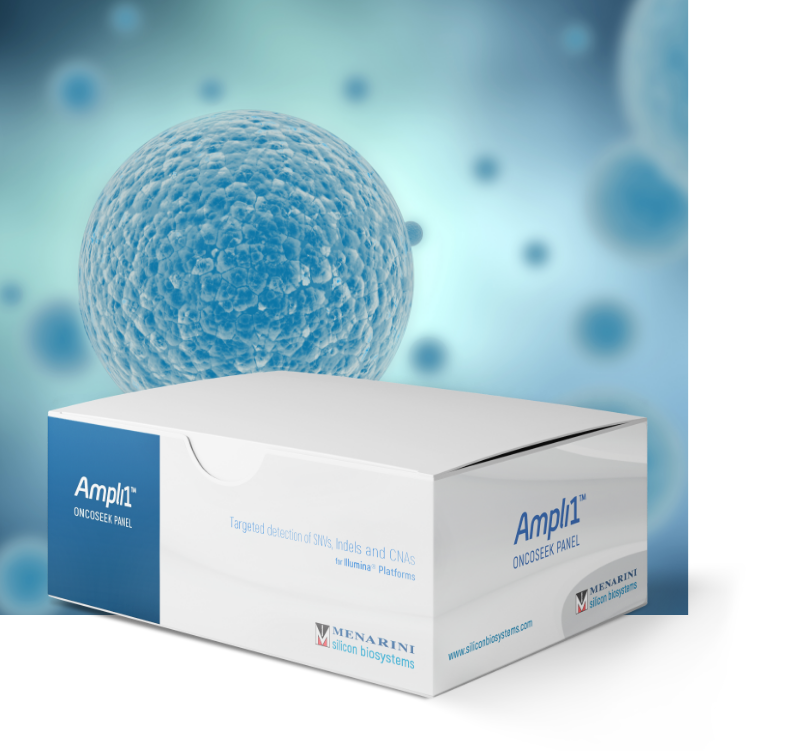

Ampli1 OncoSeek Panel

Ampli1 OncoSeek Panel for Illumina® is the first and only panel specifically designed for single-cell WGA product analysis. It enables the simultaneous detection of single nucleotide variants (SNVs), insertions/deletions (indels) and copy-number amplifications (CNAs) in a panel of 60 clinically relevant oncology-related genes.

It requires only 10 ng of DNA and works exclusively with Ampli1 WGA product. By leveraging the deterministic nature of Ampli1 WGA, Ampli1 OncoSeek achieves a very low Allelic Dropout Rate (ADO=12.7% ± 4.2%).

Ampli1 OncoSeek Panel is compatible with all Illumina® platforms using non-patterned flow cells (MiSeq, MiniSeq, NextSeq 500/550).

The Panel is currently not available in North America.

Product is for research use only (RUO) – not for use in diagnostic procedures.

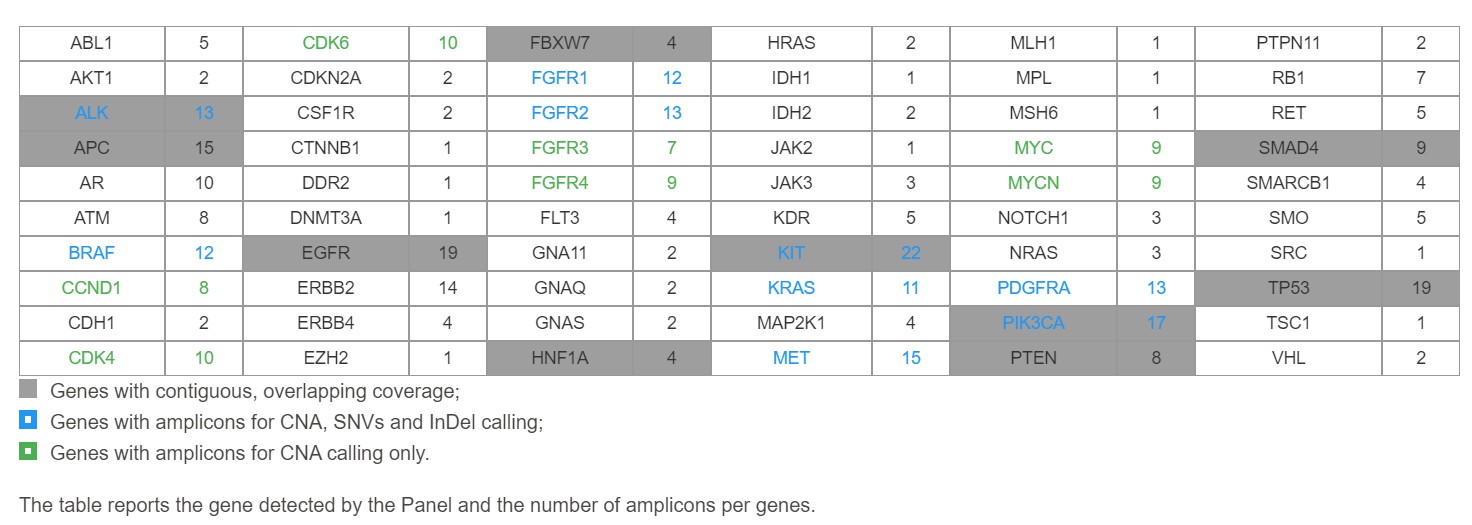

Ampli1 OncoSeek Panel targets 60 oncology-related genes
ABL1
5
CDK6
10
FBXW7
4
HRAS
2
MLH1
1
PTPN11
2
AKT1
2
CDKN2A
2
FGFR1
12
IDH1
1
MPL
1
RB1
7
ALK
13
CSF1R
2
FGFR2
13
IDH2
2
MSH6
1
RET
5
APC
15
CTNNB1
1
FGFR3
7
JAK2
1
MYC
9
SMAD4
9
AR
10
DDR2
1
FGFR4
9
JAK3
3
MYCN
9
SMARCB1
4
ATM
8
DNMT3A
1
FLT3
4
KDR
5
NOTCH1
3
SMO
5
BRAF
12
EGFR
19
GNA11
2
KIT
22
NRAS
3
SRC
1
CCND1
8
ERBB2
14
GNAQ
2
KRAS
11
PDGFRA
13
TP53
19
CDH1
2
ERBB4
4
GNAS
2
MAP2K1
4
PIK3CA
17
TSC1
1
CDK4
10
EZH2
1
HNF1A
4
MET
15
PTEN
8
VHL
2

Genes with contiguous, overlapping coverage;
Genes with amplicons for CNA, SNVs and InDel calling;
Genes with amplicons for CNA calling only.

The table reports the gene detected by the Panel and the number of amplicons per genes.

CODE
DESCRIPTION

84000031 / USA
KI0053 / EUROPE
Ampli1 LowPass Kit ION TORRENT Set A

84000032 / USA
KI0052 / EUROPE
Ampli1 LowPass Kit ION TORRENT Set B

84000065 / USA
KI0041 / EUROPE
Ampli1 LowPass Kit for Illumina - Set A
To be ordered / used together with the code 84000157 / KI0112
84000066 / USA
KI0040 / EUROPE
Ampli1 LowPass Kit for Illumina - Set B
To be ordered / used together with the code 84000157 / KI0112
84000157 / USA
KI0112 / EUROPE
Ampli1 LowPass Kit for Illumina - PEG NaCl

NA / USA
KI0116 / EUROPE
Ampli1 OncoSeek Panel for Illumina - Pre-PCR
To be ordered/ used together with codes KI0117, KI0118
NA / USA
KI0117 / EUROPE
Ampli1 OncoSeek Panel for Illumina - Post-PCR
To be ordered/ used together with codes KI0116, KI0118
NA / USA
KI0118 / EUROPE
Ampli1 OncoSeek Panel for Illumina - PEG NaCl
To be ordered/ used together with codes KI0116, KI0117

Products Resources

Visit our product resources page to access Instructions for Use and Material Safety Data Sheets (MSDSs) for all our products.

Read More

Publications

Discover recently published articles featuring research enabled by our CELLSEARCH, DEPArray and Ampli1 technologies

Read More
